JAMMARK INTERNATIONAL TRADINGE(ZIBO) CO., LTD. is one of the most professional manufacturers and suppliers of pyromellitic dianhydride for polyimide film in China. If you're going to buy high quality pyromellitic dianhydride for polyimide film made in China, welcome to get more information from our factory. For price consultation, contact us.
Polyimide film forming: two-step process optimization
1. Polyamic acid (PAA) synthesis
- Dissolve PMDA and diamine in N-methylpyrrolidone (NMP) at a molar ratio of 1:1, and perform polycondensation at low temperature at 15-20°C to avoid the decrease in molecular weight caused by high temperature.
- Control the reaction time to ≤2 hours, and the intrinsic viscosity reaches 0.8-1.2 dL/g to ensure the stability of the PAA solution.
2. Film forming and imidization
- Casting method: After defoaming, the PAA solution is cast onto the steel strip to form a uniform wet film, with the thickness deviation controlled at ±2.5μm (25μm standard film).
- Biaxial stretching: The wet film is stretched longitudinally and transversely (stretch ratio 1.2-1.5) to improve mechanical strength and dimensional stability.
- Thermal imidization: Heating at 300-400°C to dehydrate and close the PAA into a polyimide film. Chemical imidization methods (such as acetic anhydride-triethylamine system) can reduce energy consumption, but the equipment investment is high.
Key Material Properties and Industry Value

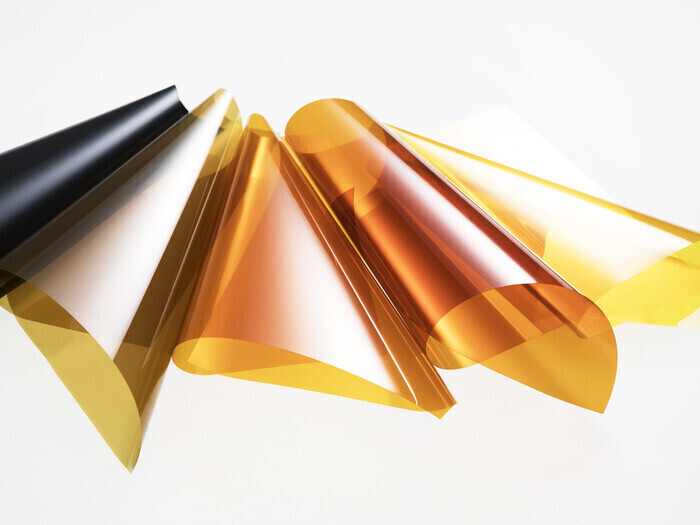

Polyimide film, known as "golden film", is a core material in high-end fields such as aerospace, electronic packaging, and flexible displays.
Its performance depends on the key monomer - pyromellitic dianhydride (PMDA).
The purity of this white crystalline powder directly affects the heat resistance, mechanical strength and dielectric properties of the film.
As the core raw material for polyimide synthesis, the molecular structure of PMDA determines the stability of the final product, and it can still maintain excellent performance in extreme environments ranging from -269°C to 400°C.
Pyromellitic Dianhydride Product Properties
| Product Name | Pyromellitic dianhydride; 1,2,4,5-Benzenetetracarboxylic dianhydride; benzene-1,2:4,5-tetracarboxylic dianhydride; PMDA; Pyromellitic Dianhydride For Polyimide Film |
| CAS No. | 89-32-7 |
| EINECS No. | 201-898-9 |
| Formula | C10H2O6 |
| Molecular weight | 218.12 |
| Structure |  |
| Appearance | White to light yellow crystal, no mechanical impurities |
| Melting point | 285~288 283.5～287 |
| Neutralization equivalent | 54.5±0.2 54.5±0.2 |
| Assay | ≥98.0% |
| Application | It is used in the manufacture of powder coatings, resins, polyimide films, matting agents and so on |

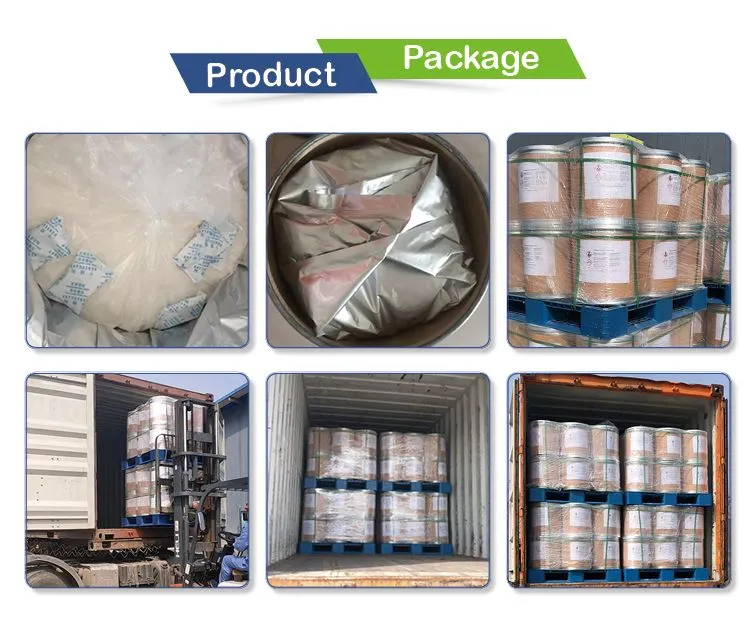

Product Package
- PE bag.Aluminum foil bag.25kg/135kg drum.450kg/ Jumbo bag.Carton.Pallet.
- Of course, you can also customize the packaging according to customer requirements.
one-stop solution
professional team
high quality
Effect of tetramethylbenzene concentration on reaction activity and production of pyromellitic dianhydride
Toluene concentration is determined by catalyst payload. When the concentration is too high, the raw materials are melted in the feed tank, mixed with hot air through the vaporizer, and then oxidized at 380-455°C. The reaction gas is cooled and solidified to obtain crude phthalic anhydride, which is refined and dried to obtain an industrial grade product for use in polyimide films.
Operating parameters:
Reaction hot spot temperature: 435~445℃
Molten salt temperature: 380~390℃
Catalyst load: 50-60g/(L·h)
Air flow rate: 3700~4200h⁻¹
Carburetor temperature: 180-200℃
Trapper inlet temperature: 210~220℃
Boshan Hengtai Chemical Plant (JAMMARK INTERNATIONAL TRADINGE) was put into operation in 2008, with a feed rate of 28kg/h and a consumption of 2 tons of toluene per ton of pyromellitic dianhydride (ltPMDA). The designed production capacity was reached after 2 months of trial production, and the product yield met the requirements. As of now, it has been exported to many countries including Europe.
Welcome to contact us for more information about pyromellitic anhydride
