Melting Point and Application Properties of Pyromellitic Dianhydride (PMDA)
1. Thermal Stability and Processing Window
- The high melting point allows for structural stability during high-temperature processing (such as polyimide synthesis), preventing premature decomposition.
- In practical applications, the reaction temperature should be kept slightly above the melting point (e.g., 390–430°C) to ensure reactivity in the molten state and prevent thermal runaway-induced side reactions.
2. Material Performance Impact
- When used as a polyimide raw material, the purity and melting point consistency of PMDA directly impact the resin's heat resistance (such as heat distortion temperature) and mechanical strength.For example, an abnormally high melting point may cause viscosity to become uncontrollable during the prepolymerization stage, necessitating adjustment of process parameters.
- In epoxy resin curing agents, the melting point determines the curing temperature range and influences the glass transition temperature of the final material.
Comparison of key parameters of pyromellitic anhydride
| Application scenarios | Temperature requirements | Correlated melting point characteristics |
|---|---|---|
| Polyimide synthesis | 390–430℃ | Need to be above the melting point to ensure melting reaction |
| Epoxy curing | 150–200℃ | Melting point determines the activation temperature of the curing agent |
| Powder coating | 180–220℃ | Affects melting uniformity and film quality |

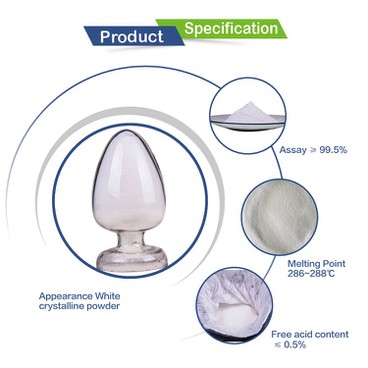

JAMMARK INTERNATIONAL TRADINGE ensures the accuracy of PMDA melting point data (283–287°C) through the following methods:
- Precision Instrument Testing: Using a Swiss BUCHI melting point apparatus, the error is controlled within ±0.5°C.
- Sample Standardization: Grind to a uniform fine powder, fill height 2–3 mm, purity ≥98%.
- Process Quality Control Integration: Optimize GHSV (500–2000 h⁻¹) and reaction temperature (390–430°C) to minimize the impact of byproducts.
- Operational Specifications: Control the heating rate (0.9–1.1°C/min) and use silicone oil as the heat transfer medium.
The data complies with international standards and meets high-end application requirements
Welcome colleagues from all walks of life to communicate with us
